美國查狄倫DG-2500N機械測力計
美國查狄倫DG-2500N機械測力計Chatillon DG 係列屬於低成本的測力解決方案,適用於多種多樣的測力應用。 DG 係列機械測力計配有 2.25 英寸刻度盤並配有用於峰值捕捉和快速歸零的峰值保持按鈕。同心刻度盤隻能順時針測量,可旋轉360度進行去皮操作。DG 係列配有通用裝配平台,其機械過載性能可保護測力計免於受損。
美國查狄倫DG-2500N機械測力計的詳細資料
美國查狄倫DG-2500N機械測力計
DG 係列是一套出色而經濟的解決方案，於拉伸或壓縮測試，其測試上限為 500 磅力(2.5 千牛)。該機械測力計具有 2.25 英寸刻度盤，可作為手持裝置，或裝配...
DG Series Mechanical Force Gauge
The CHATILLON® DG Series mechanical force gauge is ideal for a wide range of force testing applications up to 500 lbf (2.5kN). Based on our popular DPPH Series force gauge， the DG Series features a larger， 2.25-inch dial for improved resolution and readability， peak hold button， durable plastic housing， universal mounting plate， ergonomic shape and improved accuracy of +0.5% of full scale. The DG gauge is an excellent， economical solution for tensile or compression testing.美國查狄倫DG-2500N機械測力計
The DG Series may be used as a hand-held device or equipped with an optional handle set for two-hand operation. It is ideal for test stand applications，and when combined with the MT500 Series mechanical test stand， offers you a versatile， economic test system with a capacity of up to 500 lbf (2.5kN).
The DG Series features an an easy to read concentric dial that measures clockwise only. Dial rotates 360-degrees for taring. A peak hold switch captures peak readings and can be easily and quickly returned to zero. A mechanical overload feature protects the gauge from damage. Available in lbf， kgf or N units of measure. DG Series gauges come complete with protective carrying case and a set of stainless steel attachments. A Certificate of Calibration with NIST Data is supplied standard.
Features

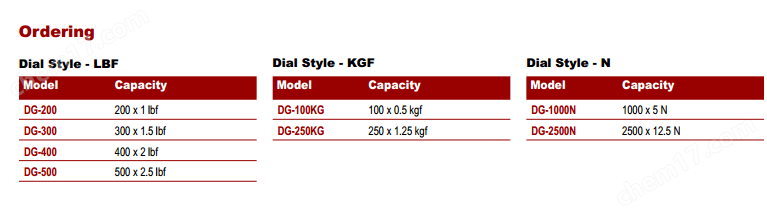

n Three Graduation Styles
- LBF
- KGF
- Newtons
n Tensile (Pull) and Compression (Push) Testing
n Peak Load Switch
n Tare Ring
n Intrinsically Safe
n NIST Calibration with Data
n 2 Year Warranty Chatillon DG-200機械測力計
Specifications
Accuracy： +0.5% of Full Scale
Overload Capacity： 110% of Rated Capacity
Maximum Overload： 150% of Rated Capacity
Tare Capacity： 10% of Rated Capacity
Dial Resolution： 0.5% of Full Scale
Deflection (Full Scale)： 10mm (.394 inches)
Operating Temperature： 40°F to 110°F
5°C to 45°C
Instrument Weight： 4.7 lbs (0.68 kg)
Shipping Weight： 8.4 lbs (3.80 kg)
